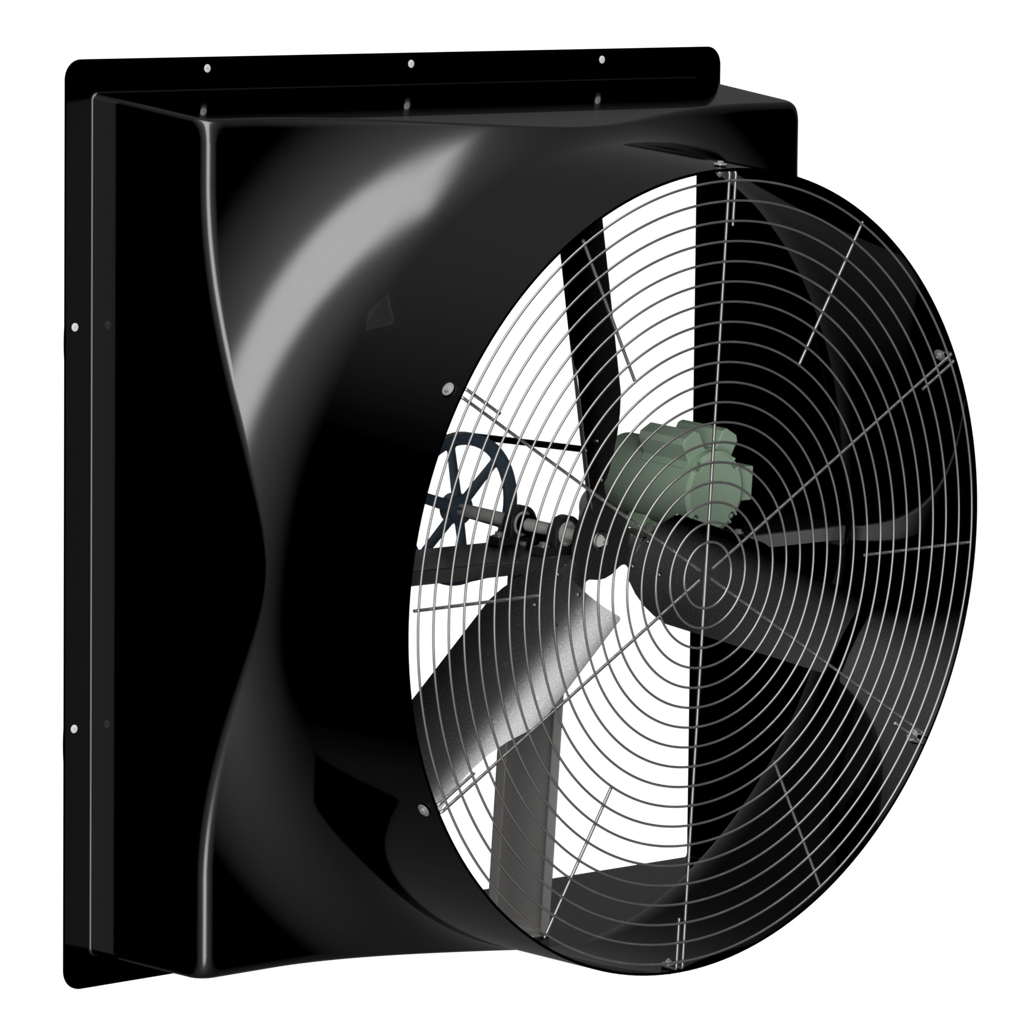

Wall Fan 60in Belt Drive
Spécifications
| Framing Size | |
|---|---|
| Rough-In Dimensions | 65.5in W x 65.5in L |
| Product Colour | |
|---|---|
| Colour | White ou Black |
| Electrical Specs | |
|---|---|
| Motor | AGI-595 2hp 230v 1ph 60Hz 9.5amp ou AGI-TC02A 2hp 575v 3ph 60Hz 2.1amp ou AGI-594 1.5hp 1ph 115/230v 60hz 13.6/6.8amp ou AGI-TU02A-2hp 3ph 208/230/460v 60hz 4.4/4.2/ 2.1/1.9amp |
| Airflow | |
|---|---|
| CFM | 30,600cfm @ .05 SP / 17.3cfm/W |
| Build Materials | |
|---|---|
| Mount | Galvanized Mount ou Stainless Steel Mount |
| Housing | Fiberglass |
| Blade | 3-Wing Galvanized Blade |
| Drive Type | |
|---|---|
| Drive Type | Belt Drive |
| Étiquettes | |
|---|---|
| Étiquettes | |
