Chimney Fan 22in
Documents
Spécifications
| Framing Size | |
|---|---|
| Rough-In Dimensions | 26in Round |
| Product Colour | |
|---|---|
| Colour | White ou Black |
| Electrical Specs | |
|---|---|
| Chimney Motor | 6E63 0.62hp 1ph 240v 60hz 2.8amp ou 6D63 0.4hp 3ph 240v 60hz 2.3/1.4amp ou Ziehl-22in-230v-1ph ou AGI-EC847 3/4hp 1ph 115/230v 60hz 8.5/4.8 400-1200 RPM |
| Airflow | |
|---|---|
| CFM | 6,783cfm @ .05 SP |
| Damper Type | |
|---|---|

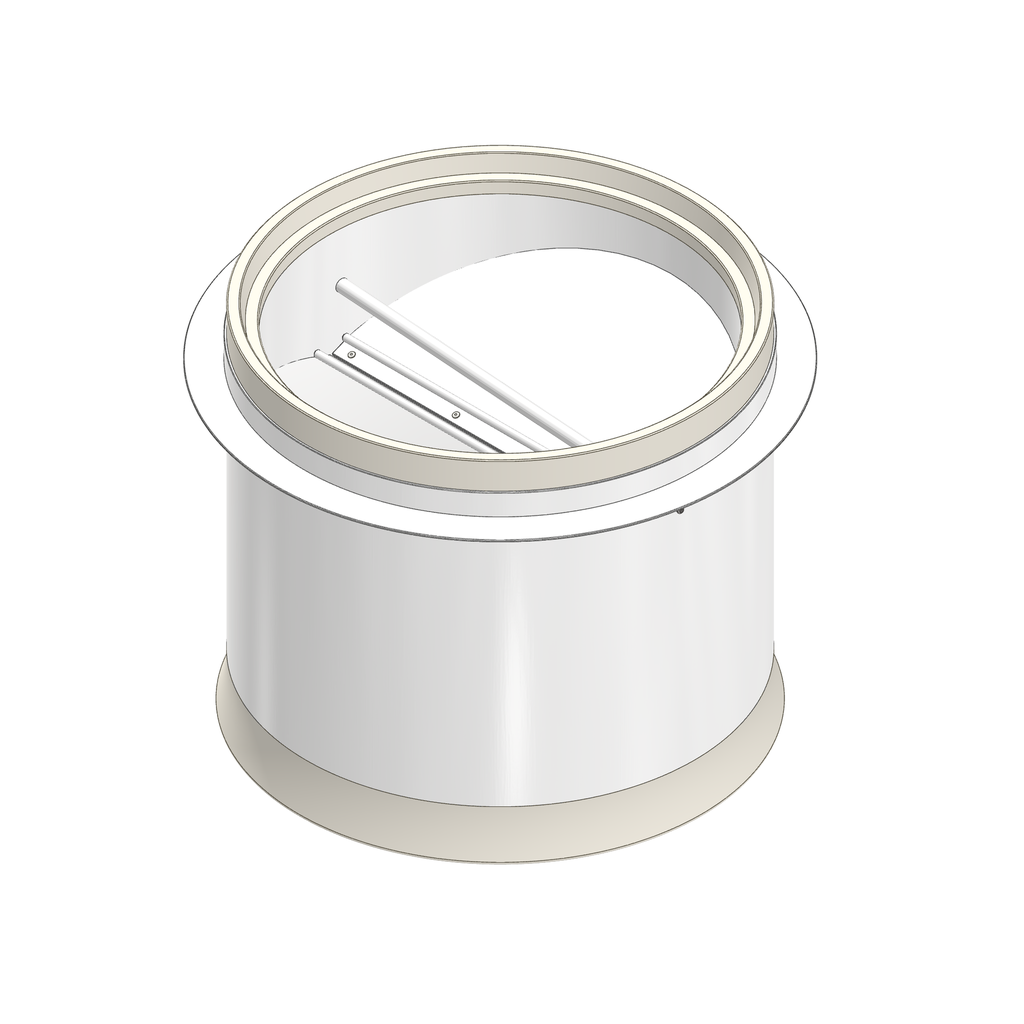

| Chimney Damper | Gravity Damper ou Manual Damper |
| Build Materials | |
|---|---|
| Housing | HDPE |
| Fan Size | |
|---|---|
| Size | 22in |
| Height | 1.5ft |
