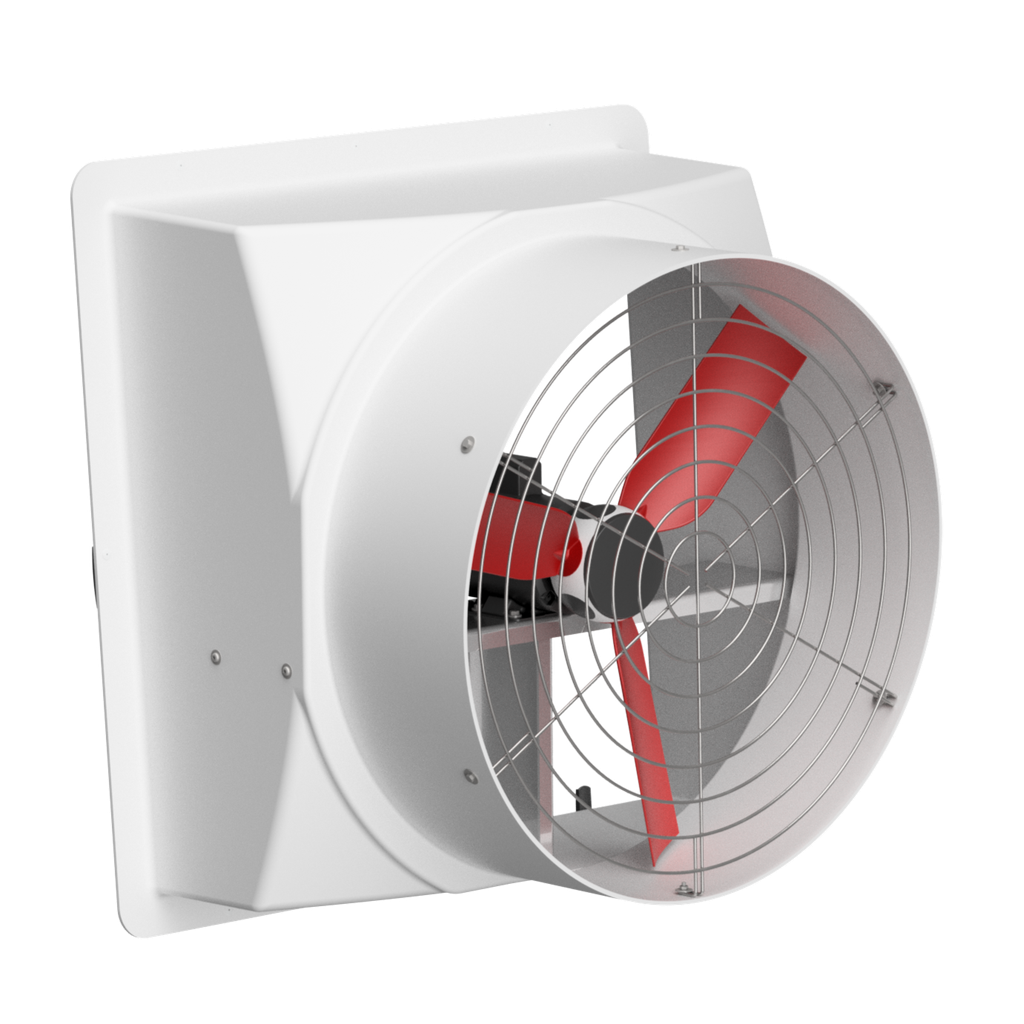

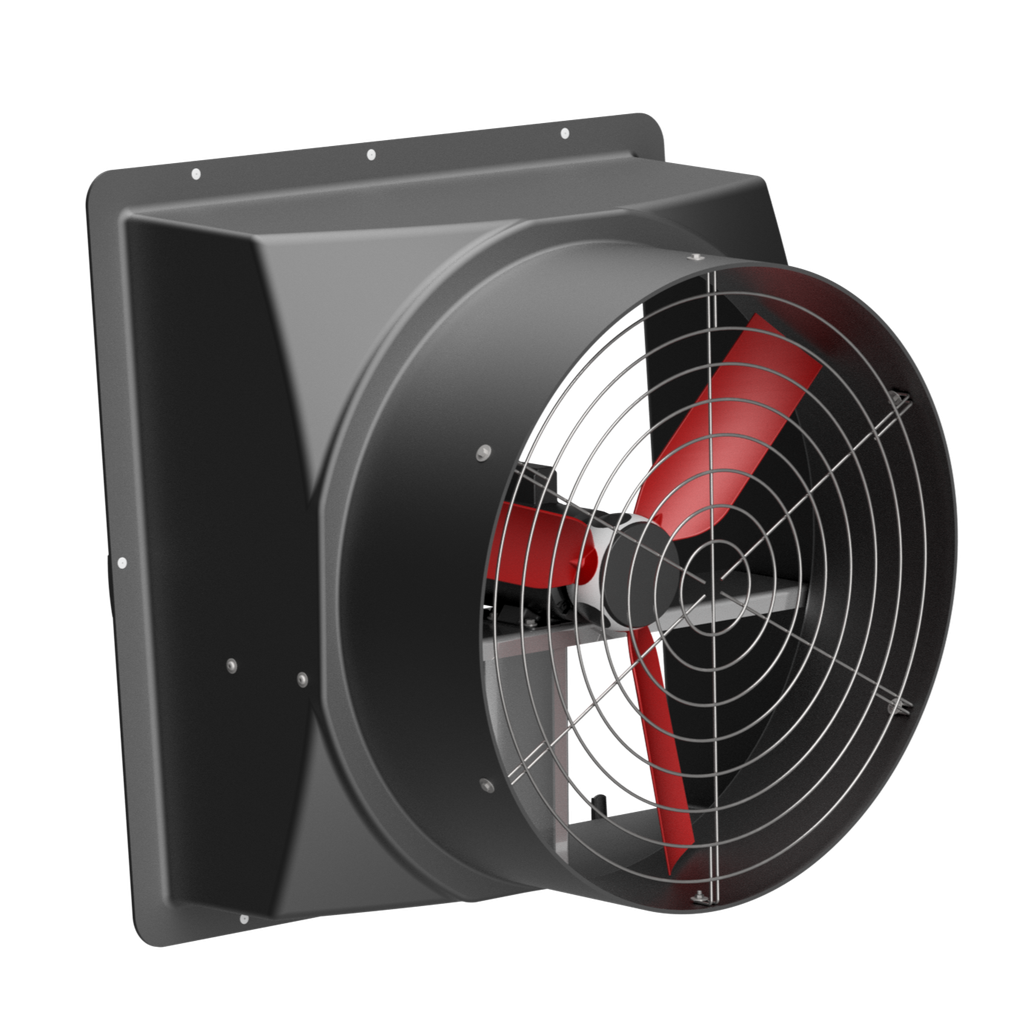

Wall Fan 36in Direct Drive
Documents
Specifications
| Product Colour | |
|---|---|
| Colour | White or Black |
| Electrical Specs | |
|---|---|
| Motor | 8E92 0.69hp 1ph 240/400v 60hz 3.8/2.2amp or 8D92 0.62hp 3ph 240v 60hz 3.7amp or AGI-EC537 1hp 1ph 115/230v 60hz 5.8/9.8amp or AGI-537 1hp 1ph 230v 60hz 4.6amp or AGI-T539A 1hp 3ph 208-230/4600v 60hz 4.4-4.2/2.1amp |
| Airflow | |
|---|---|
| CFM | 12,614cfm @ .05 SP / 10.5cfm/W |
| Build Materials | |
|---|---|
| Mount | Stainless Steel Mount or Aluminum Mount or Standard 3-Point Mount |
| Blade | 3-Wing Plastic Blade, Aluminum Hub |
| Drive Type | |
|---|---|
| Drive Type | Direct Drive |
| Tags | |
|---|---|
| Tags | |
