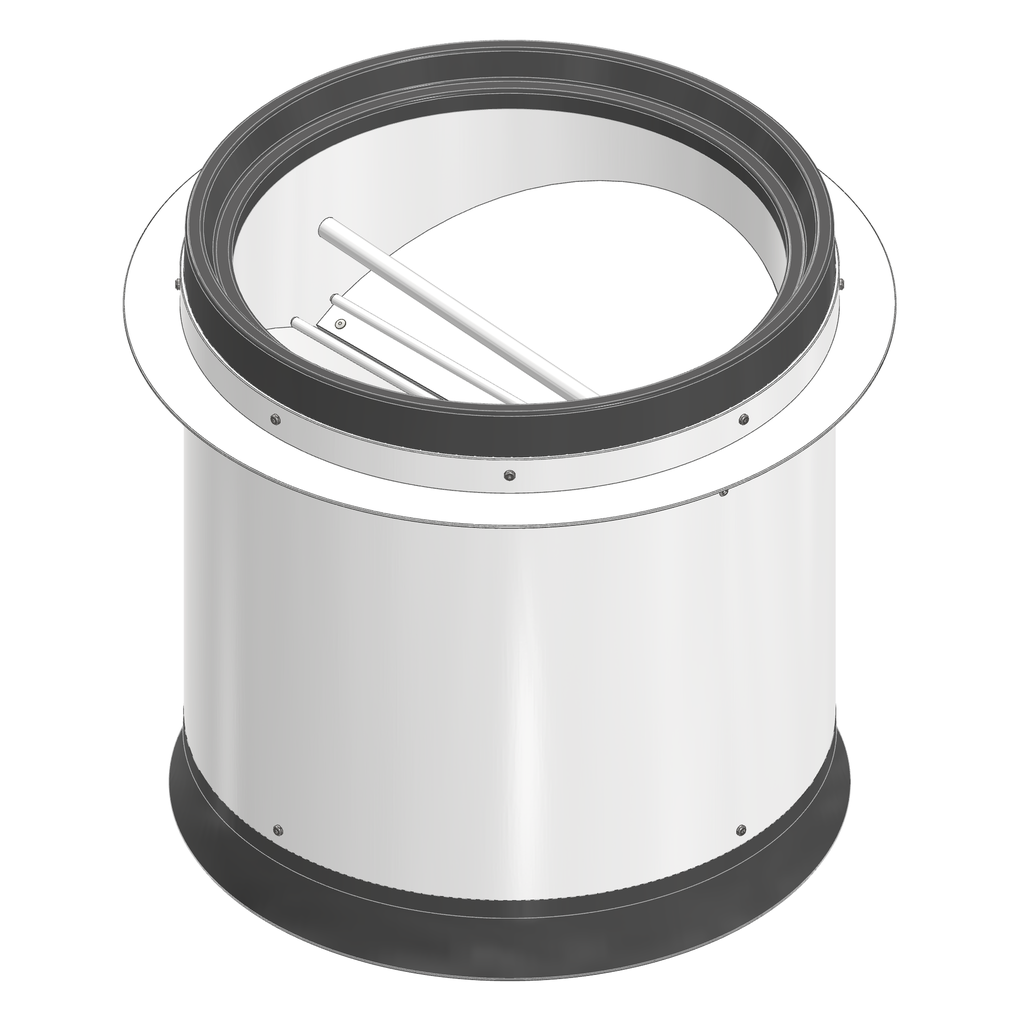

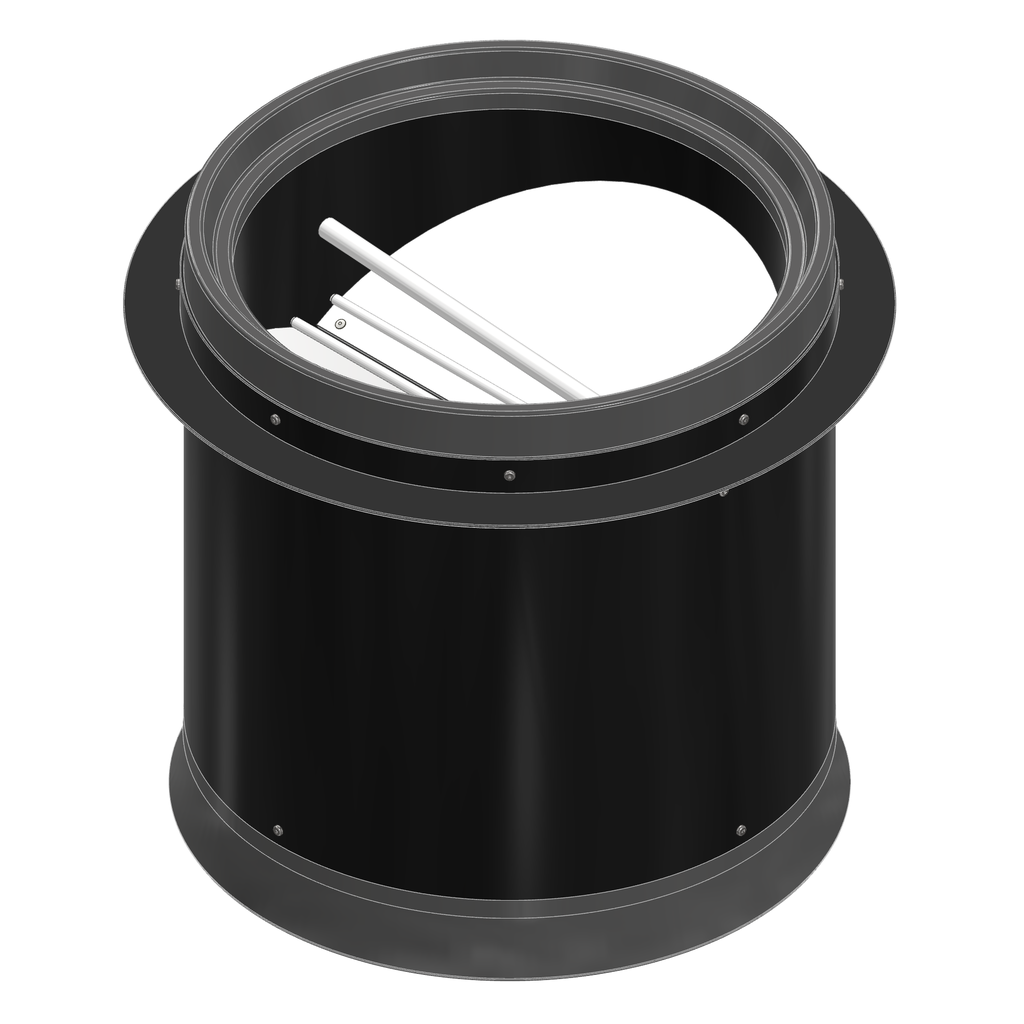

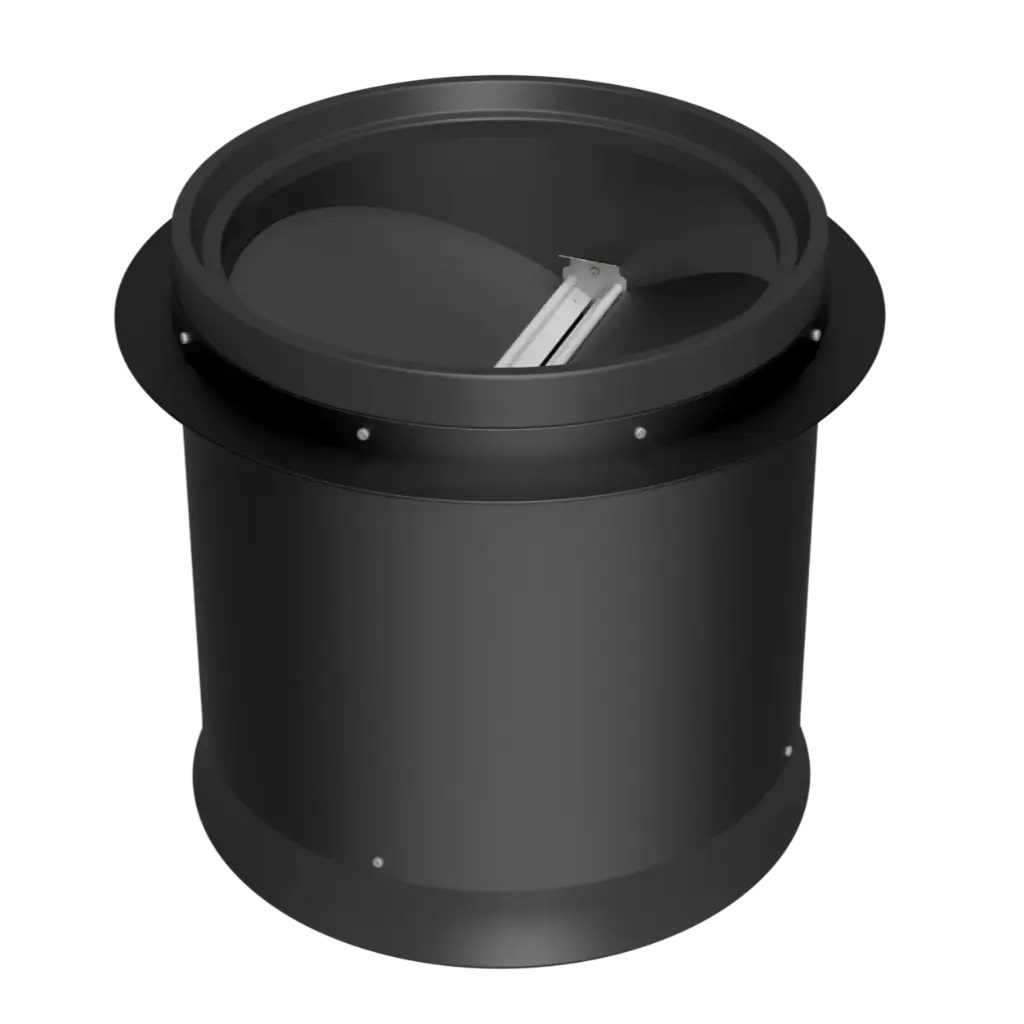

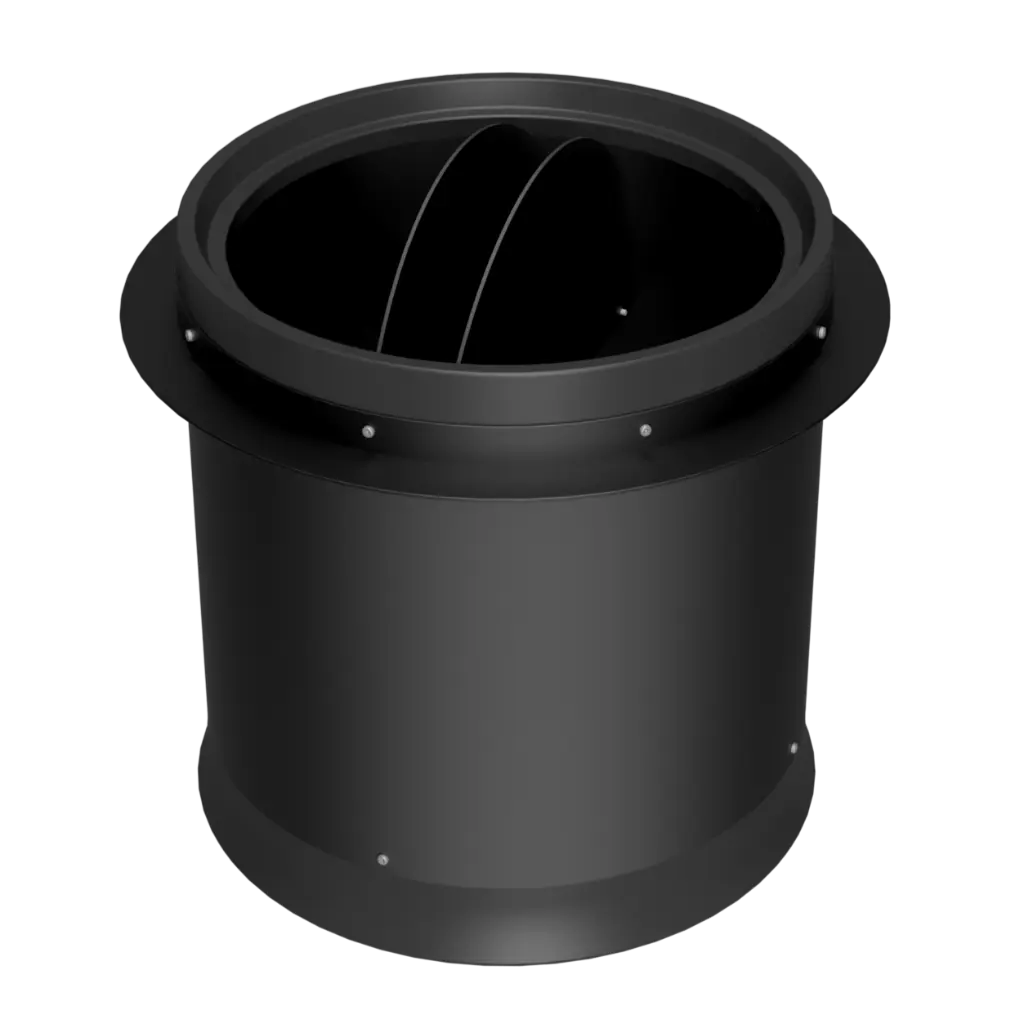

Chimney Fan 18in
Documents
Specifications
| Framing Size | |
|---|---|
| Rough-In Dimensions | 23in Round |
| Product Colour | |
|---|---|
| Colour | White or Black |
| Electrical Specs | |
|---|---|
| Chimney Motor | 4E45Q 0.26hp 1ph 240v 60hz 1.6amp or 4D45 .20hp 3ph 230/400v 60hz 1/0.6amp or Ziehl-18in-230v-1ph or AGI-EC907 1/2hp 1ph 115/230v 60hz 5.2/2.6 |
| Airflow | |
|---|---|
| CFM | 3,897cfm @ .05 SP |
| Damper Type | |
|---|---|
| Chimney Damper | Gravity Damper or Manual Damper |
| Build Materials | |
|---|---|
| Housing | HDPE |
| Fan Size | |
|---|---|
| Size | 18in |
| Height | 1.5ft |
